Performance
| Shelf capacity | 56.8m2 on 19 shelves |
| Performance ice test | 600kg ice sublimated in sub 24 hrs |
| Average yield of dry product per cycle | 120 kg based on 600 kg wet product @ 80% moisture |
| Potential heat energy recovery | 70 kW |
| Peak power requirement | 120 kW, 50 or 60 Hz |
| Est. Energy consumption | 1.9 kWh / kg |
| Est. Typical operational power consumption (Dry) | 48 kW |
Specification
| Ice condenser capacity | 600kg |
| Ice condenser temperature | -55⁰C |
| Shelf temperature range | -35⁰C to 70⁰C |
| Shelf spacing (mm) | 35mm |
| Product tray material | Food grade anodised aluminium |
| Number of product trays | 112 per cycle (2 sets supplied) |
| Heating / cooling medium | Temper 55 |
| Number of doors on product chamber | 1 |

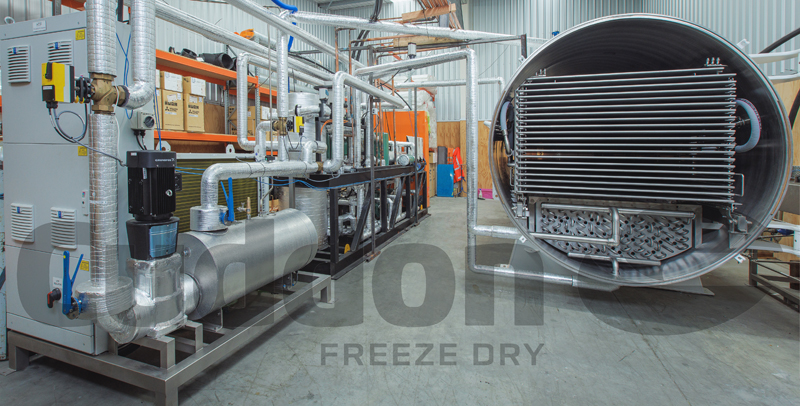

| Plant equipment | Plant on skid attached to rear of chamber |
Dimensions
| Overall footprint | 7.70m (L) x 2.63m (W) x 2.96m (H) |
| Weight | 11,900 kg |
| Product trays size | 1025mm x 495mm x 20mm |
Why Choose Cuddon Freeze Dry?
We are the experts - designing all machines with energy & cost efficiency in mind for sustainability, profitability and consistency in the quality of your product.
We are aware of the various laws & requirements in different parts of the world and supply design, build, installation and training with a complete start to finish customer experience for you and your team. No matter where you are in the world - If you need a top quality commercial freeze dryer – talk to our knowledgeable team today to find out how a Cuddon Freeze Dryer will give you the edge and help your business succeed.
